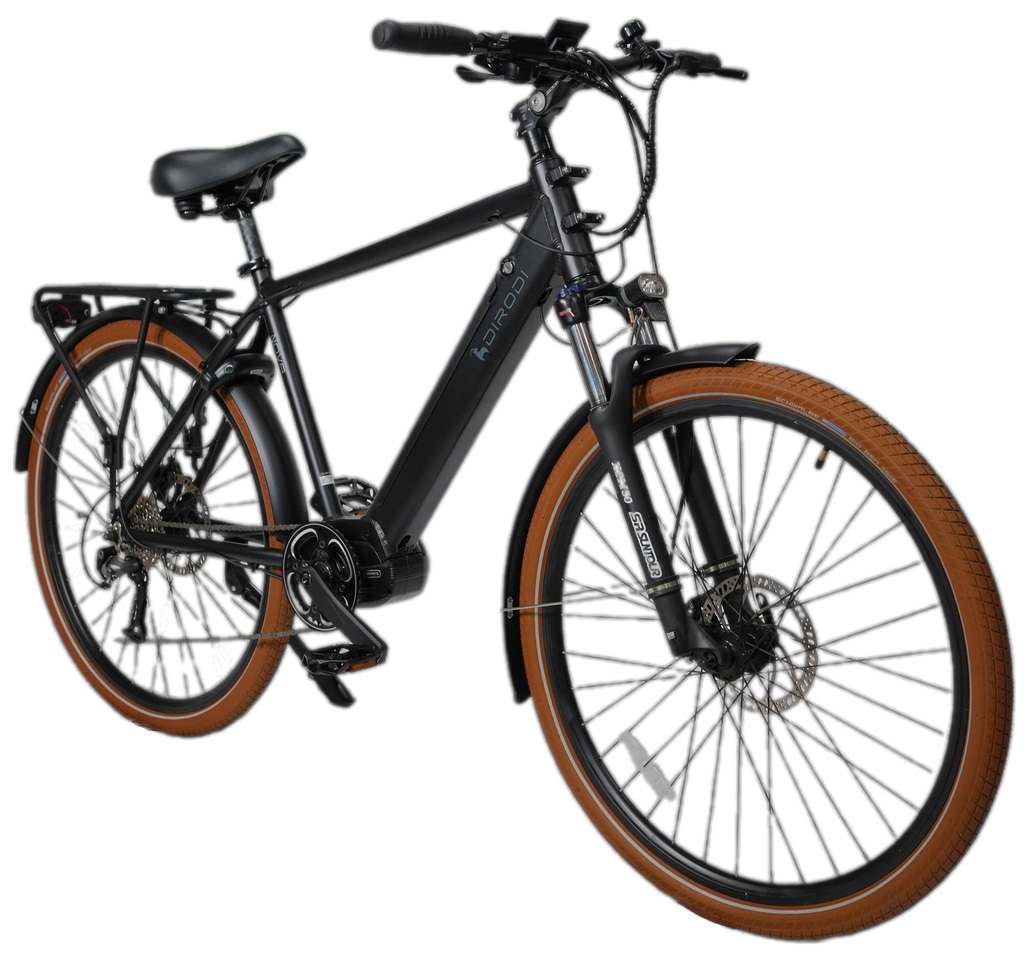

DiroDi Nova with powerful 250w motor from Bafang, the M420 motor
"Reliability, 80NM torque, smooth acceleration, mid-drive motor makes efficient use of the mechanical gears for a smooth and quality ride.
The M420 Bafang Motor, with its reduced design, the M420 drive system perfectly fits modern & stylish city and trekking eBikes. The latest iteration of the M400 range with a rated power of 250W smoothly supports until the legal speed limit of 25kmh. Powerful 80Nm of torque and sensitive controls result in a user-friendly support characteristic, especially when starting and riding uphill.
| Battery | |
|---|---|
| Battery A/H | 12.8 |
| Battery Description | Lithium Battery |
| Battery Voltage (V) | 36 |
| Battery W/H | 460.8 |
| Charging Time (Hour) | 7 |
| Max Range (KM) | 80 |
| Average Range (KM) | 45 |
| Battery Weight (KG) | 2.6 |
| Charger Model | Sans 42V 2A DC2.1 Charger |
| Removable Battery | Yes |
| General Specifications | |
| Colour | Matte Black or Matte Grey |
| Road Legal | Yes 250W |
| Road Legality Note | This bike is fully legal in specifications |
| Waterproof Rating | IP54 |
| Ergonomics | |
| Sitting Position | Hybrid |
| Handlebars Type | Flat |
| Saddle Model | Justrek Gel Saddle |
| Accessories | |
| Front Basket | Optional |
| Bell | Yes |
| Bottle Holder | No |
| Front Carrier | No |
| Front Light | Yes (Integrated) |
| Mudguards | Yes |
| Rear Light | Yes (Integrated) |
| Rear Rack | Yes |
| USB Charger | No |
| Wheel Lock | Yes |
| Brakes | |
| Brake Cut off Sensor | Managed by Mid Drive Motor Torque Sensor |
| Brake Model | Tektro HD-T275 |
| Brake Pads Model/Material | E10.11/Organic Compound Pad |
| Brake Type | Hydraulic Disk Brakes |
| Rotor Size (MM) | 180 |
| Drivetrain | |
| Gear Set | Shimano Altus 9-Speed |
| Cassette Tooth | 11-34T |
| Chain Model | TEC C70 |
| Chainring Model | Prowheel Double-Wall Chainring |
| Chainring Tooth Count | 42 |
| Derailleur Model | Shimano Altus |
| Gear Shifter | Shimano Altus |
| Number of gears | 9 |
| Suspension | |
| Suspension Type | Front |
| Suspension Compression Adjustment | Yes |
| Suspension | Yes |
| Suspension Model | SR Suntour XCM30 |
| Suspension Travel (CM) | 10 |
| Throttle | |
| Throttle | No |
| Throttle Type | N/A |
| Default Throttle Max Speed (KM/H) | N/A |
| Tyre | |
| Tyre Size (Inch) | 700C / 28" |
| Tyre Brand / Model | Schwalbe Big Ben Plus Tyres |
| Tyre Width (Inch) | 2 |
| Puncture Resistant Tyres | Yes |
| Tyre Colour | Brown |
| Frame | |
| Frame Size (Inch) | 20 |
| Max Load (KG) | 120 |
| Frame Material | Aluminium |
| Frame | Step-Over |
| Rider Height Guide | |
| Rider Max Height (CM) | 185 (6′ 1″) |
| Rider Min Height (CM) | 170 (5' 7") |
| Motor | |
| Motor Brand / Model | Bafang M420 |
| Motor Power (W) | 250 |
| Default Maximum Speed (KM/H) | 25 |
| Motor Type | Mid Drive Motor |
| Torque (NM) | 80NM |
| Bike Geometry | |
| Axle to axle length (CM) | 120 |
| Handlebars Width (CM) | 64 |
| Total length (CM) | 191 |
| Bike Weight (KG) | 26 |
| Adjustable Handlebars Angle | Yes |
| Adjustable Seat Height | Yes |
| Box Gross Weight (KG) | 33 |
| Maximum Handlebars Height (CM) | 115 |
| Maximum Seat Height (CM) | 110 |
| Minimum Handlebars Height (CM) | 115 |
| Minimum Seat Height (CM) | 88 |
| Standover Height (CM) | 85 |
| Wheels | |
| Front Wheel Mount Type | Quick-Release Axle |
| Rear Wheel Mount Type | Nutted |
| Uncategorized | |
| Boost Range (KM) | 20 |
| Seat Tube, center to center (CM) | 44 |
| Top Tube, center to center (CM) | 60 |
